Amphenol Type - N Connectors.
In Factory SEALED Packages.

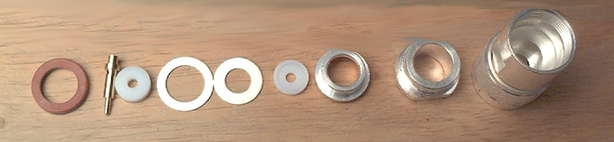

Type N connectors were developed to satisfy the need for a Durable, WeatherProof medium size RF connector with consistent performance through 11GHz. These Connectors are Silver Plated with a Gold Plate inner pin.
| Contacts | Gold Plated |
| Connector Shell | Silver Plated |
| Impedance | 50 ohms |
| RG/-U Cable | 217, 8, 9, 213, 214, 225, 143, 212, 222 |
| Frequency range | 0-11 GHz |
| Voltage Rating | 1,500 volts peak |
| VSWR | - 1.3 max. 0-11 GHz |
| Contact Resistance | Center contact 1.0 milliohm. Outer contact 0.2 milliohm. |
| RF Leakage | -90dB minimum at 3 GHz |
Insertion Loss | .15 dB maximum at 10 GHZ |
| Insulation resistance | 5000 megaohms minimum. |
 |
 | |
 |
